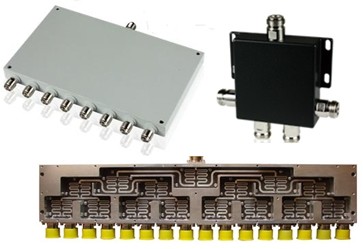

Broadband power dividers

PRODUCT FEATURES:

1.Whole series of wide frequency range (0.5-18 GHZ);

2.Low insertion loss, low VSWR, high isolation, amplitude and phase balance;

3.Combinations of 2, 3, 4, 6, 8 or more way;

4.Temperature stability is strong, and 55 ~ + 85 ℃ temperature range remains the indicators;

5.Meet "GJB - 1426-92" the various pilot projects and environmental indicators requirements;

PRODUCT USE:

　　This series product is SMA connector 0 ° miniaturized microstrip power dividers; Mainly in the electronic countermeasure, uwb system, such as communication, test and measurement applications in signal distribution or synthetic, power detection, signal sampling or signal isolation, etc.

UITRA-WIDEBAND POWER DIVIDERS：

Model Number	No. of ways	Freq.Range	Insertion Loss	Isolation	Amplitude Balance	Phase Balance	VSWR
SHP-A21A	2-way	2-18GHz	1.20dB	18dB	±0.30dB	±5°	1.50:1
SHP-A31A	3-way	2-18GHz	1.80dB	18dB	±0.70dB	±8°	1.65:1
SHP-A41A	4-way	2-18GHz	2.20dB	16dB	±0.60dB	±10°	1.65:1
SHP-A81A	8-way	2-18GHz	3.50dB	15dB	±0.80dB	±10°	1.85:1
SHP-A20A	2-way	1-12.4GHz	1.50dB	16dB	±0.40dB	±6°	1.45:1
SHP-A40A	4-way	1-12.4GHz	2.80dB	16dB	±0.50dB	±7°	1.60:1
SHP-A23A	2-way	0.5-6GHz	1.20dB	18dB	±0.20dB	±3°	1.40:1
SHP-A43A	4-way	0.5-6GHz	2.20dB	16dB	±0.30dB	±4°	1.60:1
SHP-A83A	8-way	0.5-6GHz	3.20dB	16dB	±0.50dB	±8°	1.60:1
SHP-A22A	2-way	1-8GHz	1.20dB	16dB	±0.30dB	±6°	1.40:1
SHP-A42A	4-way	1-8GHz	2.20dB	15dB	±0.40dB	±8°	1.50:1

QUADRUPLER BANDWIDTH POWER DIVIDER：

Model Number	No. of ways	Freq.Range	Insertion Loss	Isolation	Amplitude Balance	Phase Balance	VSWR
SHP-A21B	2-way	0.5-2.0GHz	0.50dB	20dB	±0.20dB	±2°	1.25:1
SHP-A41B	4-way	0.5-2.0GHz	1.00dB	20dB	±0.30dB	±3°	1.30:1
SHP-A81B	8-way	0.5-2.0GHz	1.50dB	20dB	±0.50dB	±4°	1.40:1
SHP-A22B	2-way	0.7-2.7GHz	0.40dB	20dB	±0.20dB	±2°	1.30:1
SHP-A42B	4-way	0.7-2.7GHz	0.70dB	20dB	±0.30dB	±6°	1.30:1
SHP-A82B	8-way	0.7-2.7GHz	1.20dB	20dB	±0.50dB	±8°	1.40:1
SHP-A162B	16-way	0.7-2.7GHz	1.70dB	18dB	±0.50dB	±8°	1.50:1
SHP-A23B	2-way	1.0-4.0GHz	0.50dB	20dB	±0.30dB	±2°	1.30:1
SHP-A43B	4-way	1.0-4.0GHz	0.80dB	20dB	±0.30dB	±4°	1.30:1
SHP-A83B	8-way	1.0-4.0GHz	1.50dB	20dB	±0.50dB	±4°	1.40:1
SHP-A24B	2-way	2.0-8.0GHz	0.60dB	20dB	±0.30dB	±4°	1.30:1
SHP-A34B	3-way
