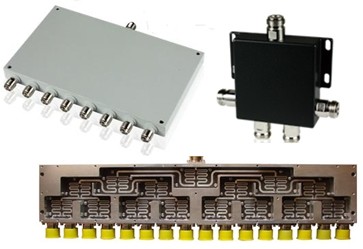

宽带功分器

产品特点：

全系列频率覆盖范围广(0.5-18GHz)；

插损低、驻波小、隔离高、幅度和相位平衡好；

组合形式可为2、3、4、6、8路等或更多路数；

温度稳定性强，-55~+85℃全温范围内仍保持各项指标；

满足“GJB-1426-92”的各种试验项目和环境指标要求；

Model Number

No. of ways

Freq.Range

Insertion
Loss

Isolation

Amplitude
Balance

Phase
Balance

VSWR

SHP-A21A

2-way

2-18GHz

1.20dB

18dB

±0.30dB

±5°

1.50:1

SHP-A31A

3-way

2-18GHz

1.80dB

18dB

±0.70dB

±8°

1.65:1

SHP-A41A

4-way

2-18GHz

2.20dB

16dB

±0.60dB

±10°

1.65:1

SHP-A81A

8-way

2-18GHz

3.50dB

15dB

±0.80dB

±10°

1.85:1

SHP-A20A

2-way

1-12.4GHz

1.50dB

16dB

±0.40dB

±6°

1.45:1

SHP-A40A

4-way

1-12.4GHz

2.80dB

16dB

±0.50dB

±7°

1.60:1

SHP-A23A

2-way

0.5-6GHz

1.20dB

18dB

±0.20dB

±3°

1.40:1

SHP-A43A

4-way

0.5-6GHz

2.20dB

16dB

±0.30dB

±4°

1.60:1

SHP-A83A

8-way

0.5-6GHz

3.20dB

16dB

±0.50dB

±8°

1.60:1

SHP-A22A

2-way

1-8GHz

1.20dB

16dB

±0.30dB

±6°

1.40:1

SHP-A42A

4-way

1-8GHz

2.20dB

15dB

±0.40dB

±8°

1.50:1

Model Number

No. of ways

Freq.Range

Insertion
Loss

Isolation

Amplitude
Balance

Phase
Balance

VSWR

SHP-A21B

2-way

0.5-2.0GHz

0.50dB

20dB

±0.20dB

±2°

1.25:1

SHP-A41B

4-way

0.5-2.0GHz

1.00dB

20dB

±0.30dB

±3°

1.30:1

SHP-A81B

8-way

0.5-2.0GHz

1.50dB

20dB

±0.50dB

±4°

1.40:1

SHP-A22B

2-way

0.7-2.7GHz

0.40dB

20dB

±0.20dB

±2°

1.30:1

SHP-A42B

4-way

0.7-2.7GHz

0.70dB

20dB

±0.30dB

±6°

1.30:1

SHP-A82B

8-way

0.7-2.7GHz

1.20dB

20dB

±0.50dB

±8°

1.40:1

SHP-A162B

16-way

0.7-2.7GHz

1.70dB

18dB

±0.50dB

±8°

1.50:1

SHP-A23B

2-way

1.0-4.0GHz

0.50dB

20dB

±0.30dB

±2°

1.30:1

SHP-A43B

4-way

1.0-4.0GHz

0.80dB

20dB

±0.30dB

±4°

1.30:1

SHP-A83B

8-way

1.0-4.0GHz

1.50dB

20dB

±0.50dB

±4°

1.40:1

SHP-A24B

2-way

2.0-8.0GHz

0.60dB

20dB

±0.30dB

±4°

1.30:1

SHP-A34B

3-way

2.0-8.0GHz

1.30dB

18dB

±0.80dB

±7°

1.40:1

SHP-A44B

4-way

2.0-8.0GHz

1.20dB

18dB

±0.40dB

±5°

1.40:1

SHP-A64B

6-way

2.0-8.0GHz

1.60dB

17dB

±1.00dB

±8°

1.40:1

SHP-A84B

8-way

2.0-8.0GHz

1.80dB

17dB

±0.80dB

±7°

1.65:1

SHP-A124B

12-way

2.0-8.0GHz

2.20dB

17dB

±1.00dB

±7°

1.65:1

SHP-A164B

16-way

2.0-8.0GHz

2.60dB

17dB

±1.00dB

±7°

1.65:1

SHP-A25B

2-way

4.0-18.0GHz

0.80dB

18dB

±0.40dB

±5°

1.50:1

SHP-A45B

4-way

4.0-18.0GHz

1.60dB

17dB

±0.50dB

±8°

1.60:1

SHP-A85B

8-way

4.0-18.0GHz

2.50dB

15dB

±0.60dB

±10°

1.80:1

Model Number

No. of ways

Freq.Range

Insertion
Loss

Isolation

Amplitude
Balance

Phase
Balance

VSWR

SHP-A21C

2-way

0.5-1GHz

0.35dB

20dB

±0.20dB

±2°

1.20:1

SHP-A41C

4-way

0.5-1GHz

0.60dB

20dB

±0.30dB

±3°

1.25:1

SHP-A22C

2-way

1-2GHz

0.35dB

20dB

±0.20dB

±2°

1.20:1

SHP-A42C

4-way

1-2GHz

0.60dB

20dB

±0.30dB

±3°

1.30:1

SHP-A82C

8-way

1-2GHz

1.00dB

20dB

±0.50dB

±5°

1.30:1

SHP-A23C

2-way

2-4GHz

0.35dB

20dB

±0.20dB

±2°

1.25:1

SHP-A33C

3-way

2-4GHz

0.60dB

18dB

±0.30dB

±5°

1.30 :1

SHP-A43C

4-way

2-4GHz

0.60dB

20dB

±0.30dB

±3°

1.30:1

SHP-A83C

8-way

2-4GHz

0.90dB

20dB

±0.50dB

±5°

1.30:1

SHP-A24C

2-way

4-8GHz

0.50dB

20dB

±0.30dB

±3°

1.25:1

SHP-A44C

4-way

4-8GHz

0.80dB

20dB

±0.30dB

±3°

1.30:1

SHP-A84C

8-way

4-8GHz

1.20dB

18dB

±0.50dB

±4°

1.50:1

SHP-A25C

2-way

6-18GHz

0.70dB

18dB

±0.40dB

±5°

1.50:1

SHP-A35C

3-way

6-18GHz

1.20dB

18dB

±0.60dB

±7°

1.60:1

SHP-A45C

4-way

6-18GHz

1.30dB

18dB

±0.80dB

±8°

1.60:1

SHP-A85C

8-way

6-18GHz

2.20dB

17dB

±0.80dB

±10°

1.80:1

SHP-A125C

12-way

6-18GHz

2.50dB

14dB

±1.00dB

±10°

1.80:1
